Adding Alternative Text to Images

All images in your document should be given appropriate alternative text. This alt text will be read by a screen reader in a Word file and should remain intact when exporting to HTML or PDF. Your alternative text should be considered a replacement to the figure; it should not be the same as the figure caption. Please see Appropriate Use of Alternative Text.

Word 2000-2003

To provide alternative text, Right-click on the image, then select Format Picture....

A dialog box will appear. Select the Web tab and then add the appropriate alternative text.

Word 2007

To add alternative text, Right-click on the picture and select Size....

A dialog box will appear. Select the Alt Text tab. You will notice that the image filename is entered into the field by default. The filename is never appropriate alternative text. Replace the filename with appropriate alternative text. For this image, it would be something like "WebAIM - Web Accessibility in Mind".

Word 2010

To add alt text to an image, Select the Format Picture... option.

With the Format Picture menu open, select the option for Alt Text in the sidebar. Two fields will appear, one labeled Title and one labeled Description. For best results, add appropriate alt text to the Description field, not the Title field. Information in the Title field will not be saved as alt text when the file is saved as PDF.

Word for Mac

Although alternative text can be added in some versions of Word for Mac, there is no way to generate a tagged PDF using Word for Mac. So the information will be lost.

The best choice is for authors to open their completed Word file on a Windows machine. Authors can then add the alternative text as per the instructions above, and generate a tagged PDF, using the Windows version of Word.

LaTeX

Unfortunately tools do not yet exist to create a tagged PDF. Authors using LaTeX will need to first create an untagged PDF. Then, within Acrobat, authors can add tags to the PDF. Finally, within Acrobat, authors can add alternative text, using the instructions below.

Acrobat

If an image or graphic does not have alternative text, you must add this by editing the properties of the associated tag, after the pdf has been created, and tags have been manually added to the PDF using Acrobat.

  1. Select the TouchUp Reading Order Tool. It may appear in the Advanced Editing menu or in the Accessibility Panel.

  2. The TouchUp Reading Order dialog will be displayed.

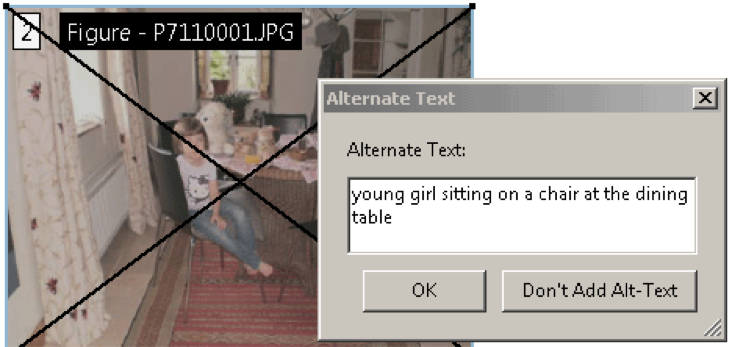

  3. Right-click on the image and choose Edit Alternate Text.
  4. Type the text alternative in the Alternate Text text box and click OK.
